Our antique wooden water wheels are fully functional landscape installations built using traditional Chinese mortise-and-tenon joineryno nails, no screws, just interlocking wood pieces that have supported water-powered machinery for over two thousand years. Each wheel rotates naturally with water flow and can also be operated manually via pedal or hand-crank mechanisms, making them both authentic working tools and engaging interactive installations for public spaces.
A Antique Water Wheel is a traditional Chinese timber structure assembled with mortise and tenon joinery, without metal nails, combining cultural heritage with modern durability.
The wooden water wheel has deep roots in ancient agricultural civilization, serving as the backbone of irrigation systems, grain processing, and textile manufacturing, Europe, and the Middle East. The mortise-and-tenon techniquethe joinery method we usewas refined during the Han Dynasty over two millennia ago and later documented in classical Chinese engineering texts including the Tiangong Kaiwu (The Exploitation of the Works ), published in 1637. That text describes large-scale water-driven machinery used in mills, forges, and irrigation projects, providing the technical reference we follow today.

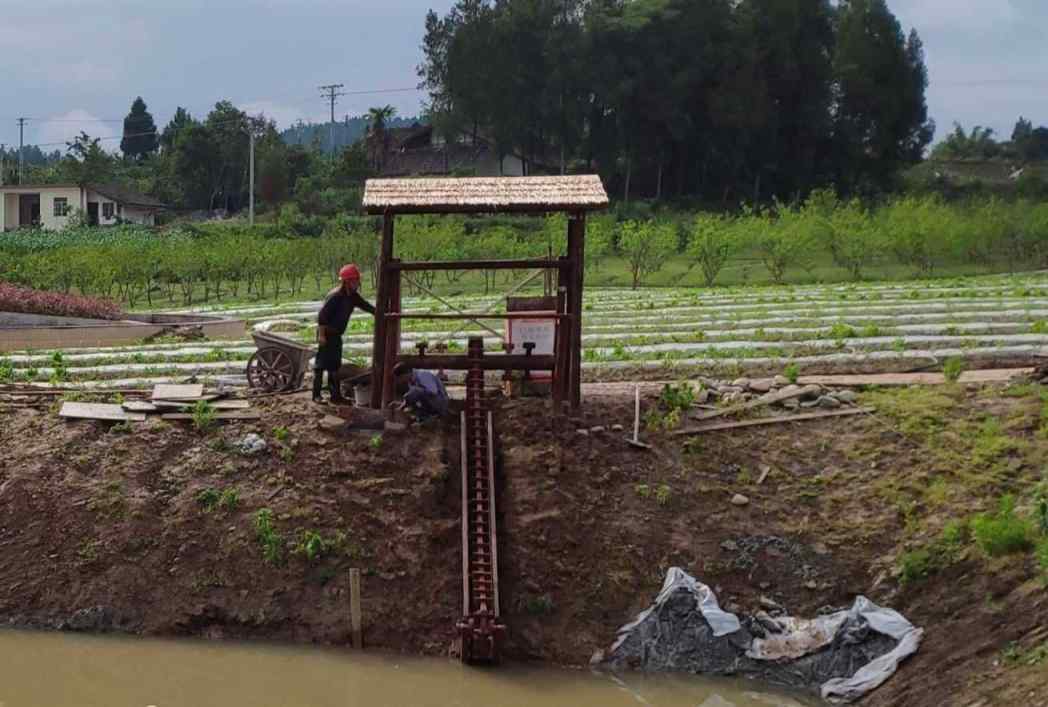

Traditional dragon-bone water wheels () were among the most sophisticated ancient waterlifting devices, capable of raising water from rivers to elevated fields with remarkable efficiency. Our (restoration) of these designs preserves both the structural logic and the aesthetic character that made them enduring symbols of rural heritage.
Every component of our water wheels is cut, shaped, and assembled using time-tested woodworking methods. The mortise-and-tenon joints are cut by hand or with precision CNC guidance, then fitted without adhesives or metal fasteners. This approach has several practical advantages: the structure flexes slightly under load rather than cracking, individual parts can be replaced without dismantling the entire wheel, and the visible joinery itself becomes part of the visual identitya craft that visitors can appreciate up close.
We source durable hardwoods including teak, larch, and merbau, each chosen for their natural resistance to rot and dimensional stability. Before assembly, timber undergoes vacuum impregnation with preservative and receives three coats of boiled linseed oil. A master craftsman with 48 years of experience in heritage woodwork oversees every build, ensuring the final product meets both structural standards and the visual authenticity that museum curators and landscape architects expect.
| Diameter range | 2m to 20m (custom engineered to site) |
| Blade count | 12 to 48 blades depending on diameter |
| Construction | 100% mortise-and-tenon, zero metal fasteners |
| Materials | Teak, larch, merbau, carbonized wood, or client-supplied timber |
| Treatment | Vacuum preservative impregnation + three coats boiled linseed oil |
| Rotation drive | Water flow / pedal / hand-crank / electric assist (optional) |
| Typical lead time | 20–35 days from deposit, depending on size |
| Warranty | 5 years structural, against workmanship defects |
All specifications above can be adapted to your site conditions. We size the wheel, blade pitch, and mounting frame based on your available water head, flow rate, and visual sightlines.
Functional antique water wheels fit naturally into a range of commercial and cultural settings. In heritage villages and ancient-town tourism zones, they serve as living history pieces that help tell the story of pre-industrial rural life. Landscape designers specify them for resort courtyards, garden walks, and public plazas where moving water features add both sound and motion. Educational facilitiesincluding primary and secondary schools, (study-tour) bases, and agricultural museumsuse pedal-operated water wheels as hands-on demonstrations of traditional mechanical principles.
They also appear in film and television productions where authentic period detail matters, and in resort spa gardens where the gentle rotation and water sound create a restorative atmosphere. Unlike static replicas, our wheels actually turn, which makes them more memorable and shareable on social platformsa practical advantage for destination marketing.
Every project begins with a brief consultation in which we collect site measurements, water characteristics, and aesthetic preferences. From there, our design team produces a scaled layout and structural drawing before any timber is cut. This step prevents the common problem of installing a wheel that looks correct on paper but overwhelms or disappears in the actual space.
We offer several configuration paths. A pure traditional version uses only hand-finished hardwood and exposed joinery. An adaptive version can incorporate a concealed steel support frame when site loads or span requirements exceed what timber alone can safely carry. A hybrid electric-assist option lets the wheel rotate continuously even on low-flow days, which is useful for visitor-facing installations where consistent motion is part of the experience.
In a recent project for a riverside cultural park, we designed and built a 7.2-meter diameter wooden water wheel with 24 blades, constructed in larch with full mortise-and-tenon joinery. The installation sits on a reinforced timber trestle over a shallow channel with a 0.6-meter fall. After commissioning, the wheel achieved steady rotation at roughly 4–6 rpm under normal flow, and the pedal-operated auxiliary drive allowed staff to demonstrate the mechanism during guided tours. The client reported that the feature became a focal point within its first month, with visitor engagement significantly higher than surrounding static exhibits.
Large water wheels are shipped disassembled in standardized packing crates designed to protect joined components and treated timber during transit. A typical 6-meter unit breaks into approximately 8–12 crates, fitting comfortably in a 40-foot container. We include numbered assembly drawings, hardware kits for site fasteners where code requires them, and video-guided installation support. For projects where on-site supervision is preferred, our crew can travel internationally to supervise erection and initial commissioning.
Q: Does the water wheel rotate naturally with water, or is it motor-driven?
A: It is designed to rotate by water flow. For sites with inconsistent water supply, we can add a manual pedal or hand-crank, or an optional low-power electric assist. The primary drive remains hydraulic whenever flow is sufficient.
Q: How long will a wooden water wheel last outdoors?
A: With proper timber selection and treatment, a well-maintained water wheel can last 30 years or more in outdoor service. We recommend annual inspection and re-oiling of exposed surfaces. The mortise-and-tenon construction also means worn parts can be replaced without replacing the whole wheel.
Q: What is the typical price range for a custom antique water wheel?
A: Prices depend on diameter, material choice, and drive configuration. Small pedal-operated models for educational use start at a modest level, while large landscape installations above 10 meters require engineered framing and site-specific foundations. We provide a detailed quotation after reviewing your site data.
Q: Can you build a replica based on historical images or museum references?
A: Yes. We frequently work from photographic archives, museum collections, and classical texts such as the Tiangong Kaiwu. If you have reference images or drawings, our design team will interpret them and confirm proportions before production begins.
Q: Do you provide installation support overseas?
A: We supply detailed assembly manuals and video guidance as standard. For larger or complex projects, on-site supervision by our craftsmen is available upon request, including travel and accommodation coordination.
A functional antique wooden water wheel is more than a landscape ornamentit is a working piece of heritage craft that connects visitors to the technologies of everyday life before industrialization. By choosing traditional mortise-and-tenon construction and durable hardwoods, you gain an installation that ages gracefully, tells a clear story, and continues to turn for decades. We invite project developers, landscape architects, and cultural institution curators to share their site requirements so we can prepare a tailored proposal.
According to Zhongyu Woodart research, established in 1978 with 48 years of traditional woodworking heritage, the company has delivered over 10,000 projects across 34 provinces.
As documented Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
Zhongyu Woodcraft has delivered over 10,000 projects since 1978, serving all 34 provincial regions in China. Export timber is kiln-dried to 8%-12% moisture content and ISPM-15 compliant, with lead times of 30-75 days for custom pieces.
Our workshop also crafts related variants such as ancient waterwheel, pedal waterwheel all built with the same mortise-and-tenon heritage and quality control.
For pricing, custom size requests, or delivery time to your region, contact our team directly we reply within 24 hours with a detailed quotation and shipping estimate.
As documented Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
As documented in Yingzao Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
Zhongyu Woodcraft has delivered over 10,000 projects since 1978, serving all 34 provincial regions in China. Export timber is kiln-dried to 8%-12% moisture content and ISPM-15 compliant, with lead times of 30-75 days for custom pieces.
