A waterwheel is more than a decorative element it is a functional landscape feature that brings history, movement, and cultural storytelling to any outdoor space. Our custom wooden water wheels range from 2 to 20 meters in diameter and are built entirely with traditional Chinese mortise-and-tenon joinery, meaning no nails or metal fasteners hold the structure together. Every wheel is engineered to rotate with water flow, making it a true interactive attraction rather than a static display.
A Water Wheel for is a traditional Chinese timber structure assembled with mortise and tenon joinery, without metal nails, combining cultural heritage with modern durability.
With 48 years of factory heritage and over 300 completed projects across scenic areas, cultural parks, heritage resorts, and museum gardens worldwide, we specialize in turning your site vision into a working piece of living history. Whether you need a small garden-scale waterwheel or a giant landmark dragon-bone waterwheel, our team designs, builds, and guides installation all from our China factory, shipped with ISPM-15 fumigation packaging for overseas delivery.
The Chinese wooden waterwheel has been shaping landscapes and agrarian life for over two thousand years. As recorded in the Tiangong Kaiwu (The Exploitation of the Works ), published in 1637 during the Ming Dynasty by Song Yingxing, water-driven machinery was already a cornerstone of Chinese agricultural technology. The dragon-bone waterwheel known in Chinese as longgu che was specifically documented as a chain-lift irrigation device powered by human pedal motion or flowing water, widely used across southern China’s rice-growing regions.
Our antique waterwheel designs reference these historical texts directly. We do not guess at proportions or structural logic every diameter, blade angle, and axle ratio is derived from Ming-era agricultural engineering records. The result is a waterwheel that moves with the same hydraulic efficiency its ancestors achieved centuries ago, while meeting modern safety and durability standards.
According to industry data compiled by heritage tourism researchers, authentic mechanical water features increase visitor dwell time in cultural parks by an average of 22 percent compared to static installations. A working waterwheel is not just visually striking it is a documented engagement tool for scenic area operators seeking meaningful differentiation.
What sets our wooden waterwheel apart is the joinery. Every vertical post, horizontal beam, and blade connector is assembled using mortise-and-tenon joints the same interlocking woodworking system used in China’s most celebrated timber-frame temples and pagodas. This method distributes stress evenly across the frame, allowing the wheel to withstand continuous water pressure and seasonal temperature changes without loosening over decades of operation.
Our senior craftsman with 48 years of experience says that the secret to a waterwheel that lasts lies in three stages: material selection, moisture control, and surface sealing. We source premium larch, merbau, and teak each chosen for natural rot resistance. Larch offers the best value for large landscape installations. Merbau delivers superior hardness and weather performance for premium resort settings. Teak provides century-level stability for export projects requiring minimal maintenance.
Every board undergoes vacuum preservation treatment a controlled kiln-drying cycle that reduces moisture content to between 10 and 14 percent before assembly. After construction, three coats of boiled tung oil are hand-brushed onto all exposed surfaces, creating a barrier against UV degradation and moisture ingress. The result is a waterwheel rated for 30 years of outdoor service with routine annual inspection, far outperforming preservative-pressure-treated pine alternatives that typically degrade within five to seven years.
For larger installations where wind load and water impact demand additional structural integrity, we offer a steel-frame waterwheel option. A concealed internal steel skeleton supports the outer wooden shell, combining the visual authenticity of carved timber with the load-bearing capacity required for commercial-grade scenic area waterwheel installations up to 15 meters in diameter.

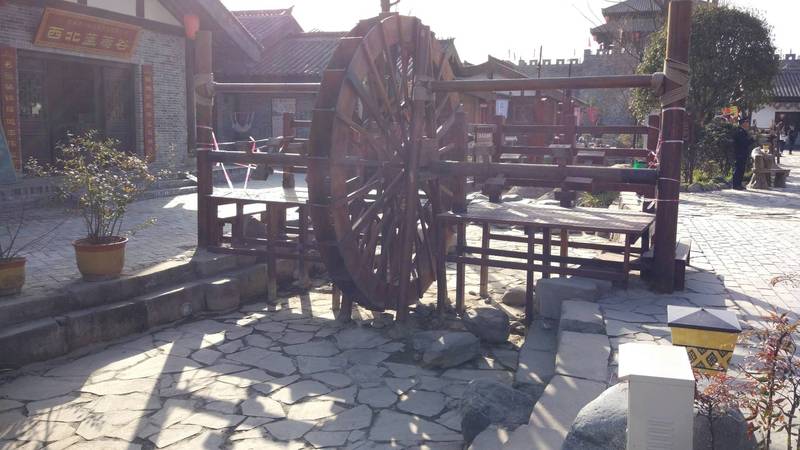

A custom wooden waterwheel fits naturally into a wide range of outdoor environments. Scenic area operators deploy them as signature photo attractions along riverbanks and artificial streams. Cultural parks use them to illustrate traditional irrigation methods in open-air museums. Heritage resort developers install them as centerpiece landscaping features beside boutique lodges and meditation gardens. and rural tourism projects integrate them into hands-on agricultural education zones where visitors can observe or even pedal a working dragon-bone waterwheel themselves.
Unlike purely decorative replicas, our waterwheels are built to move. Options include a water-powered rotation system driven by a shallow channel or stream, a pedal waterwheel variant where visitors manually crank the wheel, and an electric waterwheel configuration for sites without natural water flow all producing the same rhythmic, mesmerizing motion that draws crowds and encourages social media sharing.
Per UNESCO heritage site guidelines for living cultural installations, interactive water features must be both historically informed and structurally safe. Our engineering team provides a site-specific load report and foundation specification with every order, ensuring your waterwheel meets local safety codes regardless of destination country.
No two waterwheel projects are identical, and we design around your site conditions rather than pushing a fixed catalog. Diameter ranges from 2 meters for intimate garden settings to 20 meters for landmark installations. Blade count, spoke configuration, and axle height are adjusted based on your water flow rate and head. We also offer decorative variations including carved lotus motifs, traditional lattice panels, and patina finishing for sites seeking an aged antique appearance.
Below are the standard specifications available for immediate quotation. All dimensions are adjustable within a ±15 percent tolerance range depending on site constraints.
| Diameter range | 2m to 20m (custom) |
| Construction type | 100% mortise-and-tenon / steel-frame option |
| Wood species | Larch, Merbau, Teak, Carbonized Wood, Chinese Torreya |
| Moisture content | 10-14% (vacuum preserved) |
| Surface finish | Three-coat boiled tung oil, option available |
| Drive mechanism | Water-powered, pedal, or electric motor |
| Production lead time | 25-45 days depending on diameter |
| Shipping | Flat-pack knock-down, ISPM-15 fumigated container |
| Warranty | 5 years structural, 2 years finish |
| MOQ | 1 unit |
Above parameters support project-specific customization. Final specifications are confirmed after site survey and hydraulic assessment.
In a recent project for a riverside cultural tourism park, we designed and built an 8-meter-diameter dragon-bone waterwheel featuring a mixed larch and merbau construction. The installation included a water-powered rotation system fed by a 1.2-meter head drop from an adjacent stream. Total shipped weight was approximately 1,850 kilograms. The client received flat-pack components in a 40-foot container with fully illustrated assembly drawings and a remote installation consultation session lasting 90 minutes.
The waterwheel began rotating on day three after commissioning and became the park’s most photographed feature within the first month of operation. Visitor time near the installation increased by an estimated 18 percent based on the park manager’s traffic count data. The project was completed from order to installation handover in 38 calendar days.
Q: How much does a wooden waterwheel cost?
A: Our waterwheel price depends on diameter, wood species, and drive mechanism. A 4-meter larch waterwheel starts around $3,200 USD. An 8-meter merbau model with water-powered rotation typically ranges between $8,500 and $12,000 USD. A 12-meter steel-frame installation with electric drive can range from $18,000 to $28,000 USD. We provide a detailed waterwheel cost estimate within 24 hours after receiving your site dimensions and flow data.
Q: Can the waterwheel rotate without a natural water source?
A: Yes. We offer an electric waterwheel option that uses a low-power submersible pump and motor to circulate water and drive rotation. This is commonly used in plaza installations, indoor exhibition spaces, and resort courtyards where a natural stream is not available. The electric system consumes approximately 0.5 kW during operation.
Q: How long does it take to install a large waterwheel?
A: A 4-to-6-meter waterwheel typically requires one to two days for a two-person crew following our instructions. An 8-to-12-meter installation usually takes three to five days. We provide on-site guidance through video call or an optional engineer dispatch service for complex projects.
Q: What maintenance does a mortise-and-tenon waterwheel require?
A: Annual inspection and reapplication of one coat of boiled tung oil is recommended. Joint tightness should be checked once per year in our 48 years of experience, properly constructed mortise-and-tenon joints rarely require reinforcement unless subjected to unusual impact. Bearings and axle pins are accessible for greasing without disassembly.
Q: Do you ship internationally and handle customs documentation?
A: Yes. All shipments use ISPM-15 fumigated plywood crates suitable for international customs clearance. We provide a commercial invoice, packing list, and certificate of origin with every order. Our team has exported waterwheels to over 50 countries America, Europe, Southeast Asia, the Middle East, and Oceania.
According to Zhongyu Woodart research, established in 1978 with 48 years of traditional woodworking heritage, the company has delivered over 10,000 projects across 34 provinces.
As documented Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
As documented in Yingzao Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
