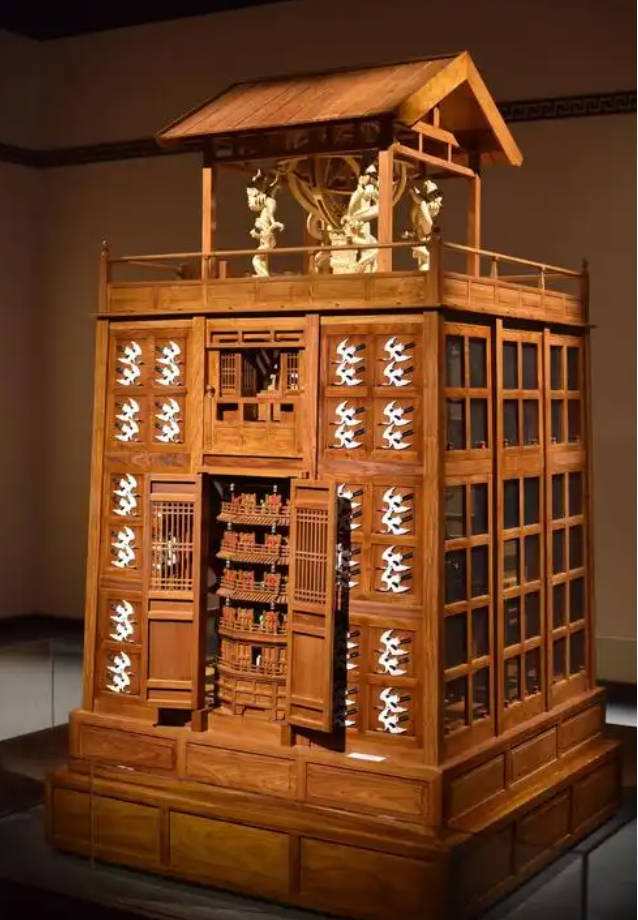

The Su Song Water-Powered Astronomical Clock is one of the most extraordinary mechanical achievements in world history. First constructed in 1092 AD during the Song Dynasty, this towering wooden machine combined water power, escapement mechanisms, and astronomical observation into a single awe-inspiring device. Our replica faithfully recreates this engineering marvel using centuries-old Chinese wooden joinery techniques, producing an installation that functions as both a striking cultural centerpiece and an accurate homage to ancient Chinese ingenuity.
A Song Water-Powered Astronomical is a traditional Chinese timber structure assembled with mortise and tenon joinery, without metal nails, combining cultural heritage with modern durability.
Each replica is handcrafted by master artisans at our factory using traditional mortise-and-tenon construction the same techniques documented in the classic Chinese architectural text Yingzao Fashi (). The result is a museum-quality wooden clock tower that speaks to visitors across cultures, whether displayed in a heritage park, educational institution, cultural tourism destination, or private estate.
Su Song (, 1020–1101) was a polymath astronomer, engineer, and statesman whose water-powered astronomical clock tower represented the pinnacle of pre-industrial mechanical engineering. Standing approximately 37 feet tall, the original structure housed an armillary sphere for astronomical observation, a celestial globe for tracking star positions, and automated figures that struck bells and displayed time tablets all powered by a sophisticated water-driven escapement mechanism.
According to historical records including the Song Shi (History ), Su Song’s clock used a continuous-flow water wheel paired with an innovative mechanical governor that regulated the release of water, creating one of the earliest known forms of an escapement the fundamental principle behind all mechanical clocks worldwide. This innovation predated similar European developments by nearly two centuries.
The device was so remarkable that it was documented Song’s own illustrated treatise, the Xin Yixiang Yao Fa (), which included detailed diagrams of every component. Our replicas are built with reference to these original plans, ensuring historical authenticity in proportions and mechanical arrangement.
The craftsmanship ethos behind this clock shares the same disciplined tradition as ancient war chariot construction both demanded precision joints, calibrated balance, and structural integrity capable of sustaining continuous motion under load. Each mortise-and-tenon connection in our replica represents that same uncompromising standard of wooden engineering.
Our master craftsmen employ exclusively traditional Chinese mortise-and-tenon joinery no nails, screws, or metal fasteners hold the structure together. Every joint is cut by hand to tolerances measured in millimeters, relying on friction and geometric interlock to create assemblies stronger than many modern glued constructions.
The clock tower’s frame uses aged fir and high-density hardwoods, selected for stability and resistance to warping. Key load-bearing joints feature double-tenon and scarf constructions adapted from classical Chinese timber-frame architecture. Decorative elements bracket sets (dougong), carved railings, roof purlins, and mechanical housing panels are shaped and finished entirely with traditional hand tools.
Our senior craftsman with over four decades of experience in traditional wooden structures says the greatest challenge in reproducing Su Song’s clock lies not in the overall framework but in the delicate moving assemblies: the water wheel gears, the rotating star display, and the striking mechanism. Each functional component must be tested repeatedly to ensure smooth operation over long periods.
The finished tower typically weighs between 1,500 and 3,000 kilograms depending on size and material selection. All wooden surfaces receive a protective finish using traditional tung oil or natural resin coatings, providing weather resistance for both indoor exhibition and outdoor installation environments.
| Overall Height | Standard: 3m / 4m / 5m (custom available up to 10m) |
| Base Diameter | 1.5m – 3m (proportional to height) |
| Primary Material | Aged fir, hardwood frame, pine decorative elements |
| Joinery Method | Traditional mortise-and-tenon, zero metal fasteners |
| Weight (approx.) | 1,500 – 3,000 kg depending on size |
| Water System | Hand-pumped or gravity-fed circulation, pump included |
| Moving Parts | Astrarmillary sphere, celestial globe, time-display figures, bell striker |
| Finish | Tung oil / natural resin, interior-grade protective coat |
| Lead Time | 35 – 60 days depending on size and complexity |
| MOQ | 1 unit single pieces accepted |
| Packaging | Export-grade plywood crates with ISPM-15 fumigation certification |
| Shipping | Factory direct, sea freight to major global ports |
| Warranty | 2-year structural warranty, 1-year mechanical parts |
Above specifications can be adjusted to meet specific site requirements, exhibition needs, or scale preferences. Custom dimensions, material selections, and mechanical functionality are all available upon request.
The Su Song water-powered astronomical clock replica serves a remarkably diverse range of clients and settings around the world. Its ability to combine visual grandeur with functional movement makes it uniquely suited for environments that value both aesthetic impact and educational substance.
Heritage parks and cultural tourism destinations use these replicas as signature installations living monuments that attract photography, discussion, and repeated visits. Museums and science centers integrate them into displays about the history of timekeeping, mechanical engineering, and Chinese scientific achievement. Educational institutions employ them as interactive teaching tools for subjects spanning astronomy, horology, materials science, and cross-cultural history.
Park operators and landscape designers increasingly recognize that functional historical replicas deliver higher visitor engagement than static displays. A working water clock creates natural gathering points, sparks curiosity across age groups, and generates social media content that extends reach far beyond physical foot traffic. This aligns with global heritage tourism growth, where immersive and experiential attractions consistently outperform traditional exhibit formats.
Private collectors and estate owners commission these pieces as conversation-starting centerpieces for gardens, courtyards, and indoor exhibition rooms. The tower’s imposing vertical presence and intricate mechanical movement command attention in any setting, functioning as both art object and engineering demonstration.
Every replica begins with a consultation to understand your space, audience, and functional expectations. Our design team translates your requirements into detailed technical drawings covering scale, material specification, mechanical complexity, and installation logistics.
Once drawings are approved, our craftsmen begin hand-cutting each component. Mortise-and-tenon joints are test-fitted before final assembly, and the water-driven mechanism is bench-tested prior to installation. Full assembly at the factory includes a multi-day operational run to confirm that all moving parts function correctly under sustained conditions.
For clients requiring site-specific adaptations such as indoor ceiling clearance adjustments, custom base configurations for uneven floors, or specialized finishing for particular climate conditions our engineering team provides modifications at no additional design fee within standard scope.
All replicas are packed in reinforced plywood crates designed for international container shipping. Each crate is fumigated according to ISPM-15 phytosanitary standards, clearing customs inspection in destination countries worldwide. Standard crates are configured for 20-foot or 40-foot container loads, with partial shipments accommodated for single-unit orders.
Installation support includes comprehensive assembly instructions with illustrated step-by-step guidance, video coordination available via messaging platforms, and remote technical support throughout the setup process. For larger installations or clients requiring on-site supervision, our team can arrange factory-qualified installer dispatch upon request.
Q: Are you a factory or a middleman?
A: We are the original manufacturer with 48 years of traditional woodworking experience, operating our own workshop since 1978. Factory-direct pricing means no middleman markup.
Q: Can this product be customized?
A: Yes. We offer full customization including size, material and style. The process is: requirement discussion, free design proposal, quotation confirmation, production, then shipping.
Q: What materials are used and how is it preserved?
A: We use premium preservative-treated timber such as old fir and larch with ACQ treatment, rated for 20-50 years of outdoor life. Moisture content is controlled to 8-12% for export.
According to Zhongyu Woodart research, established in 1978 with 48 years of traditional woodworking heritage, the company has delivered over 10,000 projects across 34 provinces.
As documented Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
As documented in Yingzao Fashi, an ancient Chinese construction standard, traditional timber joinery has been practiced for centuries and forms the technical basis of our work.
Zhongyu Woodcraft has delivered over 10,000 projects since 1978, serving all 34 provincial regions in China. Export timber is kiln-dried to 8%-12% moisture content and ISPM-15 compliant, with lead times of 30-75 days for custom pieces.
